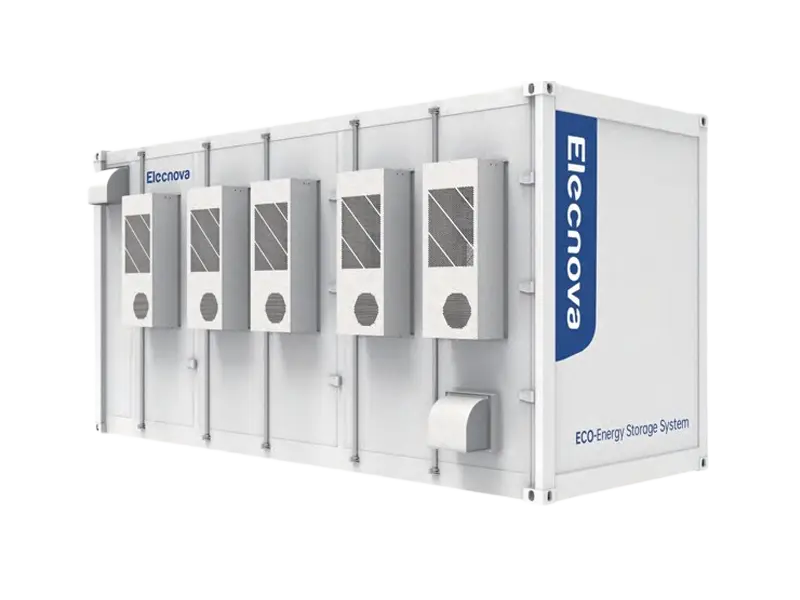

he 20-ft air-cooled ESS container product integrates PACK, EMS, BMS, HVAC, fire safety system into one container.
It has the advantages of high energy density, easy transportation & installation, and high protection level. The DC output can combine with PCS-boost container to realize AC network connection at medium/high voltage. It can be applied to the generation side, grid side, and ESS applications with high power and energy capacity requirements.
Safe & Reliable
High-end and ESS-specific LFP cells to achieve high energy density, long cycle life and non-sponta-neous combustion.
Economical & Efficient
Low system cost, high charge/discharge efficiency, support various ESS applications.
Smart Cooling
Smart cooling ensures temperature difference not over 8℃.
Precise Temp Control
One-cluster-one-air-conditioning achieves accurate temp control for battery consistency and modular temp strategy.
String Design
Cooperate with modular PCS to eliminate battery system inconsistency caused by parallel connec- tion of cells.
Smart O&M
Triple-level BMS achieves real-time monitoring and control of core from battery, PCS, HVAC, fire safety etc,. EMS achieves remote monitoring and control to reduce cost and improve maintainability.
| Item | Specification |
| Configuration | 10P380S |
| Rated Energy | 3.404MWh |
| Rated Voltage | 1216Vdc |
| Voltage Range | 1064~1368Vdc |
| Charge/Discharge Rate | 0.5C |
| Operating Temperature | -25°C~55C |
| Fire Safety | NOVEC1230/aerosol+water |
| Ingress Rating | IP55 |
| Cooling | Forced air cooling |
| Altitude | ≤2,000m (derating above 2,000m) |
| Dimensions (W*D*H) | 6,058*2,438*3,100 (mm) |
| Compliance | UN38.3 |
